Главная страница /Продукция/Льдогенератор для чешуйчатого льда с морской водой/CE maquina de gelo flake ice maker factory commercial seawater 5 ton salt ice machine for fishing boat

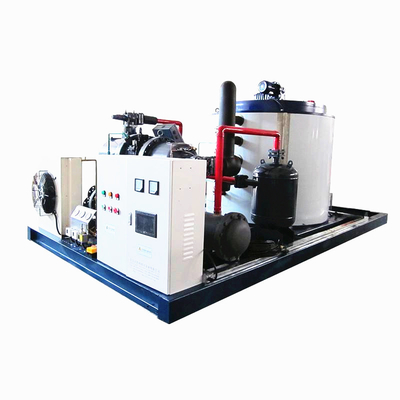

CE maquina de gelo flake ice maker factory commercial seawater 5 ton salt ice machine for fishing boat

1.0 Sets
MOQ
CE maquina de gelo flake ice maker factory commercial seawater 5 ton salt ice machine for fishing boat
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops
Condition: New
Ice Shape: Flake Ice
Voltage: 220V 240V 380V 415V 440V 480V
Dimension(L*W*H): 1700*1550*1610
Weight: 780 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Ice storage capacity: 300Kg
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, Pump, PLC
Compressor brand: Emerson, Bristol, Frascold, Bitzer, Performer, TECUMSEH, Maneurop, Copeland, Daikin, Fusheng
Application: Commercial
Product name: maquina de gelo flake ice maker plant sea water 5 ton salt ice machine
Сертификация: ce
After-sales Service Provided: Online support
Capacity: 0.3TON/24HOURS
Showroom Location: Chile
Основная информация
Сертификация: ce
Оплата и доставка Условия
Packaging Details: plywood for small one ,and big one need loading in 20 feets container .
Supply Ability: 1000 Set/Sets per Month
Характер продукции
Product Description
maquina de gelo CE flake ice maker plant sea water 5 ton salt ice machine for fishing boat
Main parts name
Brand
Orgin
Compressor
Copeland/Bitzer Danfoss/Fusheng
America/Germany/Danmark/China
Oil sperator
Unite
America
Electromagetic valve
Alco
America
Economic expansive valve
Danfoss
Danmark
Reducer
Gongji
Taiwan
PLC control
LG
Korea
Direction for use

1. Flake Ice: Dry, pure, powderless, not easy to block, flake ice thickness is about 1.8mm~2.2mm, without
edges or corners which will can product the cooling food, fish, seafood and other products.

2. Microcomputer Intelligent control: the machine is using PLC Control System with world famous brand
components. Meanwhile, it can portect the machine when there are water shortage, ice full, H/L pressure
alarm, and motor reversal.

3. Evaporator drum: Use stainless steel material or carbon steel chrominum. The style of inside machine
ensures constant running at the lowest power consumption

4.Application: The concrete flake ice machine have been applied in refreshing vegetable, fruit, foodstuff in
supermarket.

technical data sheet

Ice flake evaporator advantages:
(1)Be made of low-temperature pressure vessel special materials and passed precision processing;
(2)More sufficient evaporation area and better performance with dry style evaporation way;
(3)Whole processing is made by vertical lathe to ensure the precision up to 2 ounces;
(4)Be designed and produced with standard low-temperature pressure vessel manufacturing process, including surface treatment, heat
treatment, gas-tight test, tensile&compression strength test, etc.
(5)Using imported refrigeration accessories;

(6)All water supply line are made of stainless steel, high sanitary condition;
(7)Fast ice forming & falling speed, ice begins within 1 to 2 minutes.
(8)Ice blade: made of SUS304 material seamless steel tube and formed through only one time process. It's durable.
(9)Spindle and other accessories: made of SUS304 material through precision machining, and conform to food hygiene standards.
(10)Thermal insulation: foaming machine filling with imported polyurethane foam insulation. Better effect.
Tips: (1)Evaporator size and installation direction can be customized according to customers' requirements;
(2)The material of evaporator wall and up and down pedestal is available (304&316).
Small commerical flake ice machine
Model
compressor power
daily output
refrigeration capacity
coolng way
power supply
total power
refrigerant
weight
unit size
XT-F03T
2HP
0.3t/24h
1290Kcal
air cooling
220v/1ph/50hz
1.49
R22
165
780*905*920
XT-F05T
3HP
0.5t/24h
2580
air cooling
380v/3ph/50hz
2.37
R404a
215
1100*820*740
XT-F1T

5HP
1.5t/24h
5160
air cooling
380v/3ph/50hz
4.11
R404a
242
1100*820*840
XT-F1.5T
9HP
1t/24h
7740
air cooling
380v/1ph/50hz
7.29
R404a
360
1310*970*1005
XT-F2T
10HP
2t/24h
10320
air cooling
380v/1ph/50hz
8.31
R404a
440
1500*1095*1050
XT-F3T
15HP
3t/24h
15480
air cooling
380v/3ph/50hz
11.59
R404a
560
1750*1190*1410
1.strandard cooling mode:air cooling ,can be designd to water cooling to customer request.
2.strandard condition:ambient temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C

Medium size industry flake ice machine
Model
compressor power
daily output
refrigeration capacity
cooling way
power supply
total power
refrigerant
weight
unit size
XT-F4T
20HP
4t/24h
20640 kcal
water cooling
380v/3ph/50hz
18.49
R404a
672
1700*1550*1470
XT-F5T
25HP
5t/24h
25800
water cooling
380v/3ph/50hz
23.2
R404a
780
1700*1550*1610
XT-F6T
30HP
6t/24h
30960
water cooling
380v/3ph/50hz
27.31
R404a
845
1700*1550*1610
XT-F8T
40HP
8t/24h
41280
water cooling
380v/3ph/50hz
35.24
R404a
1020
2300*1900*1720
XT-F10T
50HP
10t/24h
51600
water cooling
380v/3ph/50hz
41.84
R22
1640
2800*1900*1880
XTF-12T
55HP
12t/24h
61920
water cooling
380v/3ph/50hz
45.34
R22
1940
2800*1900*1880
XTF15T
60HP
15t/24h
83850
water cooling
380v/3ph/50hz
53.42
R22
2250
3500*2150*1920
1.strandard cooling mode:R404a ,can be designd to R22 to customer request.
2.strandard condition:ambient
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
Large scale industry flake ice machine
Model
compressor power
daily output
refrigeration capacity
cooling way
power supply
total power
refrigerant
weight
unit size
XT-F20T
80HP
20t/24h
1118000
water cooling
380v/3ph/50hz
66.29
R22
3160
3500*2150*2240
XT-F25T
100HP
25t/24h
139750
water cooling
380v/3ph/50hz
84.59
R22
3140
3500*2150*2240
XT-F30T
130HP
30t/24h
1667700
water cooling
380v/3ph/50hz
112.32
R22
3440
5000*2140*2555
XT-F40T
160HP
40t/24h
240800
water cooling
380v/3ph/50hz
134.5
R22
4860
6300*2200*2240
1.strandard R22,
.2.strandard condition:ambient
temperature 25C ,water inlet temperature 15C,evaporating temperature -22C ,Condensing temperature 40C
We can offer non -standard design accorrding to customer special request.like material, cooling mode,refrigerant ,power supply,unit& ice stoarge room size and intallation type ETC
